The three first steps to secure its own new Ubuntu server, in the cloud or not :
- Change the default port for SSH connections.
- Disable direct access through SSH with the root account.
- Enable ufw (Ubuntu Uncomplicated Firewall) allowing incoming SSH connections.
This article does not explain how to enable and use ufw, there are many tutorials about ufw, this article focuses on how to safely enable
ufw for the first time allowing SSH connections with SSH running on the non default port. In many articles, the reader is told to
be cautious when enabling ufw without mentioning the command
ufw show added, this command will guarantee there is no human error
before enabling ufw, human error that could break and disrupt existing SSH connections without the ability to establish new ones
otherwise than having to contact the supplier or physically accessing the server.
In this article, ssh service will listen on port 1857 and ufw is enabled allowing SSH incoming connections on this port. Some extra checks are performed before enabling ufw (IP v6 and default policies).
Changing default port for SSH connections
By default, SSH service listens on port 22. Without any security or firewall configurations defined, many connection attempts appear in
the log file
Mar 26 12:29:18 vps sshd: Failed password for invalid user cb from 126.96.36.199 port 56224 ssh2 Mar 26 12:29:18 vps sshd: Received disconnect from 188.8.131.52 port 56224:11: Bye Bye [preauth] Mar 26 12:29:18 vps sshd: Disconnected from invalid user cb 184.108.40.206 port 56224 [preauth]
So, first thing to do, change the default SSH port 22 to another one : here 1857.
Modify the port of the SSH service in the file
Then restart the SSH service :
root@vps$ /etc/init.d/ssh restart

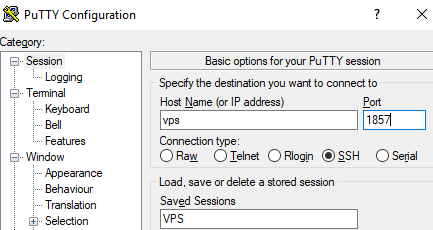

All new SSH connections with Putty, or any other tool (FTP Filezilla…), will be defined with the new port.
lsof are useful binaries to check ssh service listening ports and process id :
root@vps$ lsof -i -P -n | grep LISTEN | grep 'sshd'
sshd 939 root 3u IPv4 18880 0t0 TCP *:1857 (LISTEN) sshd 939 root 4u IPv6 18891 0t0 TCP *:1857 (LISTEN)
root@vps$ netstat -tulpn | grep LISTEN | grep 'sshd'
tcp 0 0 0.0.0.0:1857 0.0.0.0:* LISTEN 939/sshd tcp6 0 0 :::1857 :::* LISTEN 939/sshd
Disabling direct access from root user
To strengthen security, disable direct access from user
root through SSH connections.
Create an account that will be a bounce account for
root access, for example an account named
root@vps$ useradd -d /home/gateway -m -g wapp -s/bin/bash gateway
Set a strong password for the account
root@vps$ passwd gateway
Enter new UNIX password:... passwd: password updated successfully
In the file
/etc/ssh/sshd_config, set the parameter
no in the section
# Authentication: … PermitRootLogin no …
Restart the SSH service :
root@vps$ /etc/init.d/ssh restart
gateway previously created will now be used for root access :
gateway@vps$ su - root
Configuring and enabling ufw
A non default port is now defined for SSH and direct access from
root user is not allowed. So let’s enable ufw for the first time with
SSH incoming connections allowed on port 1857.
First of all, IP v6 and default policies are checked.
Before enabling ufw, check if IP v6 is disabled or not in the Ubuntu system.
IP v6 is supported and activated if the file
root@vps$ ls /proc/net/if_inet6
This file lists all network interfaces with IP v6 enabled :
root@vps$ cat /proc/net/if_inet6
fe80000000000000f8163efffeb7a0f0 02 40 20 80 ens3 00000000000000000000000000000001 01 80 10 80 lo
Here, IP v6 is enabled for the network interfaces
If the Ubuntu server has IP v6 enabled, ensure that ufw is configured to support IP v6 so that it will manage firewall rules for IPv6 in
addition to IP v4. Check that the parameter
IPV6 is set to
yes in the file
With this parameter, when ufw is enabled, both IP v4 and IP v6 firewall rules will be configured.
In the file
/etc/default/ufw, ensure also that the parameters
are defined respectively to
With these parameters values, when ufw is enabled for the first time, the firewall rules will be : allow outgoing and deny ingoing connections.
Allowing SSH incoming connections
Then add the firewall rule allowing SSH incoming connections on port 1857 :
root@vps$ ufw allow 1857
Rules updated Rules updated (v6)
Verify the rule is properly added with the command
show added :
root@vps$ ufw show added
Added user rules (see 'ufw status' for running firewall): ufw allow 1857
Now ufw can be safely enabled, existing and future SSH connections won’t be disrupted :
root@vps$ ufw enable
Command may disrupt existing ssh connections. Proceed with operation (y|n)? y Firewall is active and enabled on system startup
To verify ufw status :
root@vps$ ufw status verbose
Status: active Logging: off Default: deny (incoming), allow (outgoing), disabled (routed) New profiles: skip To Action From -- ------ ---- 1857 ALLOW IN Anywhere 1857 (v6) ALLOW IN Anywhere (v6)
2 rules are created allowing incoming connections on port 1857 : one rule for IP v4, the second one for IP v6.
